PA Hoses

Nylon Tube (PA6)

Name: Nylon Tube (PA6)
SKU: PA6-0425

Nylon tube (PA6) is harder and more heat&chemical resistant than other material. Suitable for air, water, chemicals, lubrication, instrument line, irrigation control system, auto parts, fuel delivery pipe, electrostatic insulator etc. Comply with ROHS.

Model

Add to Quote Request a Quote

Features

Technical Parameters

Specification	Value
Material	Nylon, Polyamide (PA6)
Fluid	Air, Water, Oil, Normal PH Solvents
Hardness	64D
Operating Temperature	-40°C ~ +100°C

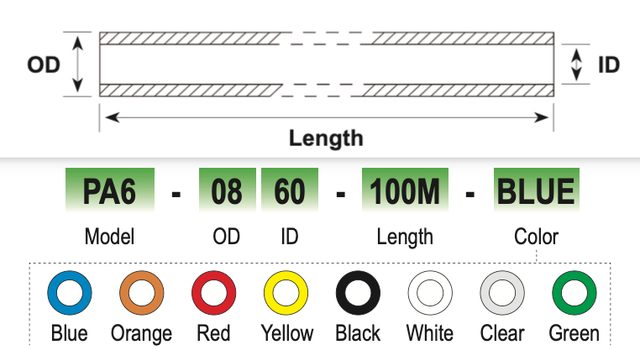

Size, Model and Color Guide

PA6 - OD ID - Length - Color

Dimensions: OD · ID · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	OD	ID	Length	Net Weight (kgs/roll)	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)	Max Bend Radius (mm at 20°C)
PA6-0425	4mm	2.5mm	200m	1.7	30bar	90bar	20mm
PA6-0640	6mm	4mm	200m	3.6	30bar	90bar	30mm
PA6-0860	8mm	6mm	100m	2.5	30bar	90bar	40mm
PA6-1080	10mm	8mm	100m	3.3	20bar	60bar	60mm
PA6-1075	10mm	7.5mm	100m	4	30bar	90bar	50mm
PA6-1210	12mm	10mm	100m	4	20bar	60bar	120mm
PA6-1290	12mm	9mm	100m	5.7	30bar	90bar	60mm
PA6-1/4	1/4"	0.165"	200m	3.9	30bar	90bar	35mm
PA6-3/8	3/8"	1/4"	100m	4.4	30bar	90bar	55mm
PA6-1/2	1/2"	3/8"	100m	6.2	30bar	90bar	120mm
