PFA Coiling Tube

Name: PFA Coiling Tube
SKU: PFAC-0420

PFA tube has transparent and exquisite appearance. It has super corrosion resistance, excellent high and low temperature resistance, chemical solvent resistance. It can be used in semiconductor, chemical and other industrie etc.

Model

Add to Quote Request a Quote

Features

Technical Parameters

Specification	Value
Material	PFA
Fluid	Strong acid, Strong alkali, Oil, Water, High temperature gas
Hardness	55D ~ 60D
Operating Temperature	-200°C ~ +260°C

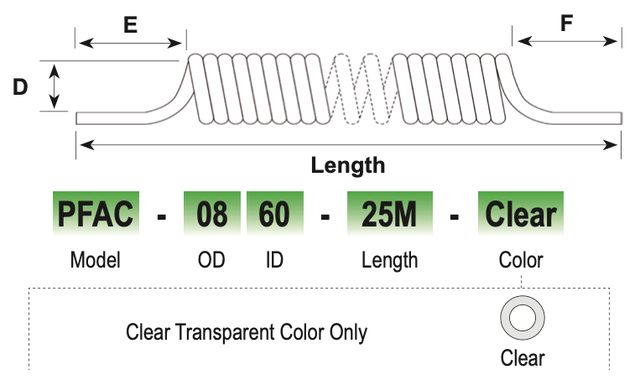

Size, Model and Color Guide

PFAC - OD ID - Length - Color

Dimensions: D · E · F · Length

Colors: Clear

Model Parameters

Part No.	Length	D	E	F	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)
PFAC-0420	1~25m	32mm	80mm	80mm	28bar	84bar
PFAC-0640	1~25m	38mm	80mm	80mm	18bar	54bar
PFAC-0860	1~25m	48mm	80mm	80mm	12bar	36bar
PFAC-1080	3~25m	58mm	80mm	80mm	8bar	24bar
PFAC-1290	3~25m	68mm	80mm	80mm	12bar	36bar
PFAC-1/4	1~25m	38mm	80mm	80mm	18bar	54bar
PFAC-3/8	3~25m	58mm	80mm	80mm	12bar	36bar
