PU Hoses

PU Tube

Name: PU Tube
SKU: PU-0320

The ester-based PU tube, featuring excellent pressure resistance, weather resistance, corrosion resistance and flexibility, used for the piping of air concerned systems.

Model

Add to Quote Request a Quote

Features

The ester-based PU tube, featuring excellent pressure resistance, weather resistance, corrosion resistance and flexibility, used for the piping of air concerned systems.

Application

Industrial automation, pneumatic tools, tube for water and fluids, vacuum tubes, protective sleeve for metal and electronic products.

Technical Parameters

Specification	Value
Material	Polyester Polyurethane
Fluid	Air, Water
Hardness	95A ~ 98A
Working Pressure (20°C)	0-10 bar
Burst Pressure (20°C)	30 bar
Operating Temperature	-20°C ~ +80°C
Size Tolerance	2~8mm: ±0.10mm; 10~16mm: ±0.15mm

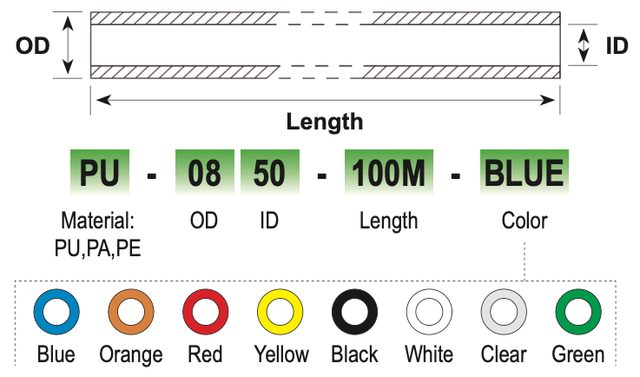

Size, Model and Color Guide

PU - OD ID - Length - Color

Dimensions: OD · ID · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	OD	ID	Length	Net Weight (kgs/roll)	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)	Max Bend Radius (mm at 20°C)
PU-0320	3mm	2mm	200m	1.4	10bar	30bar	10mm
PU-0425	4mm	2.5mm	200m	1.9	10bar	30bar	10mm
PU-0640	6mm	4mm	200m	3.9	10bar	30bar	15mm
PU-0855	8mm	5.5mm	100m	3.3	8bar	24bar	20mm
PU-0850	8mm	5mm	100m	3.8	10bar	30bar	20mm
PU-1065	10mm	6.5mm	100m	5.6	10bar	30bar	30mm
PU-1280	12mm	8mm	100m	7.8	10bar	30bar	35mm
PU-1410	14mm	10mm	100m	9.4	8bar	24bar	55mm
PU-1612	16mm	12mm	100m	11	8bar	24bar	65mm
PU-5/32	5/32in	0.098in	200m	1.9	10bar	30bar	10mm
PU-1/4	1/4in	0.167in	200m	4.4	10bar	30bar	15mm
PU-5/16	5/16in	0.197in	200m	3.8	10bar	30bar	20mm
PU-3/8	3/8in	1/4in	200m	4.9	10bar	30bar	30mm
PU-1/2	1/2in	1/3in	200m	8.8	10bar	30bar	35mm
