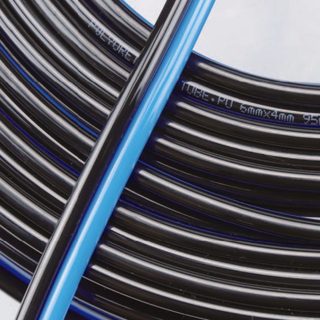

PU Twin/Multi-Row Tube

Name: PU Twin/Multi-Row Tube
SKU: PUS-04-04

Included several PA,PU,PE tubes inside, and covered with PVC or TPU. Anti-wear, Space-saving, better color distinction.

Model

Features

Included several PA,PU,PE tubes inside, and covered with PVC or TPU. Anti-wear, Space-saving, better color distinction.

Can be used for robot, industrial robots, industrial automation and mining etc.

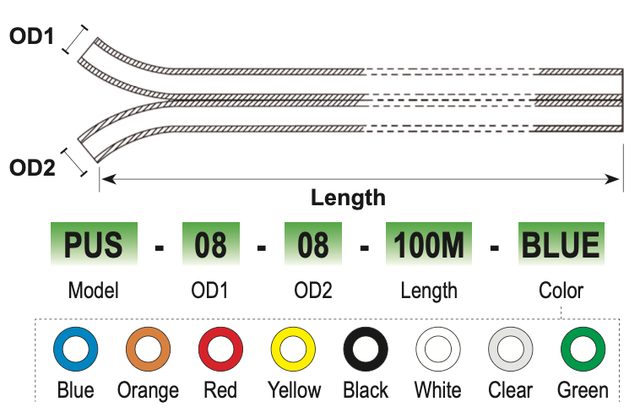

PUS - OD1 - OD2 - Length - Color

Dimensions: OD1 · OD2 · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Part No.	OD1	OD2	Length	Net Weight (kgs/roll)	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)	Max Bend Radius (mm at 20°C)
PUS-04-04	4mm	4mm	100m	3.8	10bar	30bar	10mm
PUS-06-06	6mm	6mm	100m	7.8	10bar	30bar	15mm
PUS-08-08	8mm	8mm	50m	7.6	10bar	30bar	20mm
PUS-10-10	10mm	10mm	50m	11.2	10bar	30bar	30mm
PUS-12-12	12mm	12mm	50m	15.6	10bar	30bar	35mm
